Description
MAXIMUM USE OF ENERGY
The Nadia Lift Up Glass Wood Burning Fireplace Insert – 14kW Inset Stove Wood Burner is resistant to high temperatures due to the steel used during production.

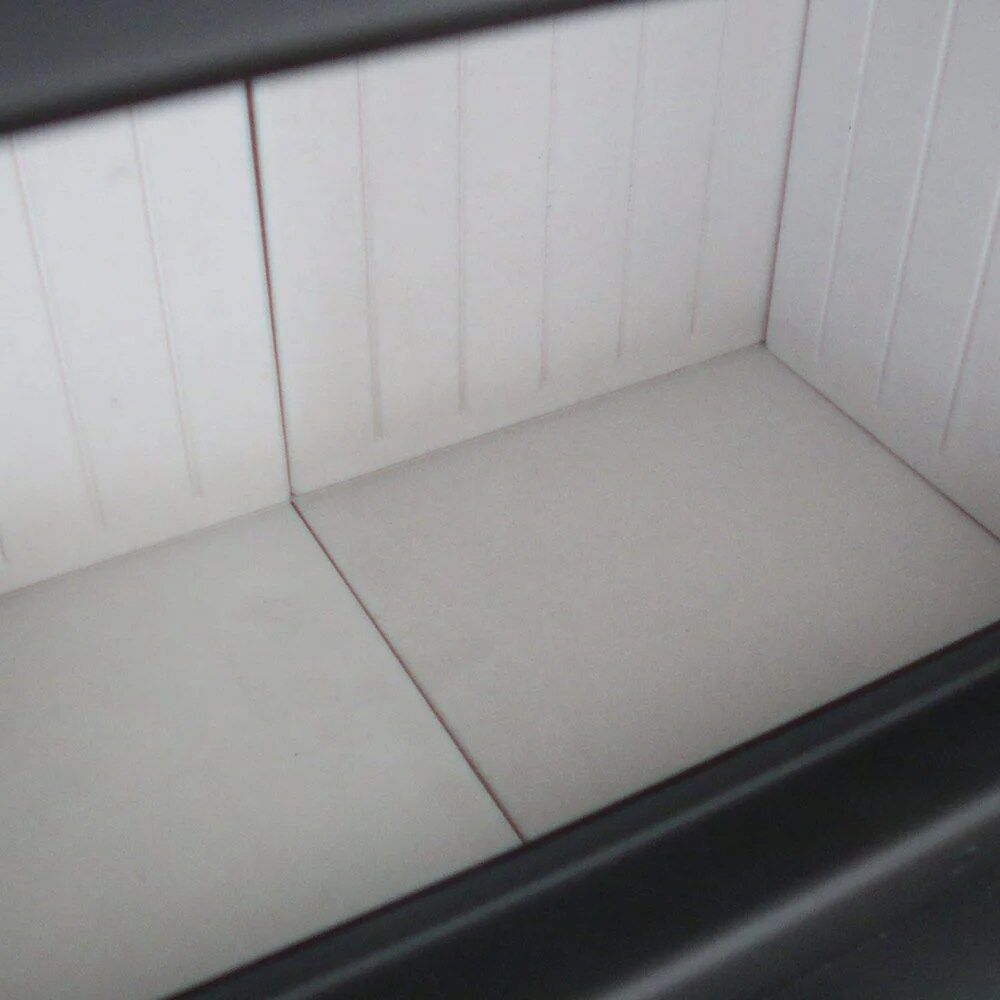

The combustion chamber is lined with TERMOTEC, a heat-accumulating material that raises the temperature within the combustion chamber.
Deflectors that extend the exhaust gas pathway allow for better combustion of fuel particles.
Only external air is supplied thanks to the built-in external air inlet of 125 mm. Adjustment of air with only one regulator to prevent improper use.
Triple air system for the combustion chamber: Primary air is directed to the combustion plate, and secondary air is supplied through the holes in the back wall. The system of air-clean glass (curtain) has also been used.
Hexagonal hearths are a great way to keep combustion chambers clean.
This system provides high-efficiency performance for insert wood burners, insert wood stoves, and insert wooden stoves.
SAFETY AT THE HIGHEST LEVEL
The noble gas shielding is welded solidly to ensure perfect tightness.
All steel components are laser-cut and bent using CNC bending machines.
The inset stove wood burner insert’s front is equipped with heat-resistant ceramics, which can withstand temperatures of up to 660°C.
The built in wood burner system, the built in log burner, and the built in wood stove fireplace are all designed for safe installation.
ECOLOGICAL COMBUSTION
The unit meets both the Ecodesign standard and the BimSchV2 standard, which limits the CO emissions.
This is the perfect solution for those looking for an eco design wood burner or modern wood insert and energy efficient wood fireplace.
CONVENIENT TO USE
The inset stove wood burner firewood is burned to a minimum amount of fine ash with the Grateless Fireplace Insert. The maximum amount of thermal energy is extracted from the firewood.
An air curtain system reduces soot deposition.
The window of the insert is raised up by the door. The system is based on a counterweight. A steel cable pulley moves in two ball bearing guides, distributing the weight evenly. The door moves a few millimeters from the body to prevent damage to the seal.
It is suitable for cassette wood stoves and inset wood heaters.
MODERN DESIGN
Ceramics with a decorative finish that are heat resistant and can handle temperatures of up to 660°C. This gives the fireplace insert a more modern, elegant appearance. It also visually increases the size of the front.
Elegant and comfortable handle.
The perfect match for a modern inset wood burner and inset wood fireplace.
